SWIR InGaAs CAMERAS

State-of-art SWIR cameras

A complete range of SWIR InGaAs sensors & cameras all designed and made in our factory

Unlike many competitors, we control the entire production chain, from sensor development to camera manufacturing and software integration, ensuring superior performance, flexibility, and customization options.

Why Choose NIT SWIR Cameras?

Our advantages

R

In-House Sensor & Camera Development

We design, develop, and manufacture our own InGaAs sensors and cameras, providing unmatched control over quality and innovation.

R

Unique InGaAs sensor/camera producer

We offer SWIR cameras from qVGA to Full HD with the best noise and sensitivity performance available.

R

French engineering

Precision-crafted SWIR cameras developed in France, ensuring the highest quality standards.

R

Versatile camera platform for customer customization

Our modular camera platform allows OEM customization for specialized applications.

R

Part of LYNRED’s Infrared Ecosystem

As Lynred’s SWIR business unit, we deliver advanced SWIR imaging solutions that complement LYNRED’s product portfolio, offering a complete infrared imaging spectrum (SWIR, MWIR, LWIR) for diverse applications.

R

No ITAR restriction (ITAR-free)

No export restrictions, making our SWIR cameras accessible worldwide.

Camera Selector

Find your SWIR cameras according to the technical specifications

Resolution
Interface
Hardware option
Showing 1 – 10 of 10 results Showing all 10 results Showing the single result No results found
Filters Sort results
Reset Apply
SenS 1280 - 1920 front side view4
New
SenS 1920
High Sensitivity
High Sensitivity Full HD SWIR camera NIT's NSC2101 low-noise focal…
(+)
High Sensitivity Full HD SWIR camera NIT's NSC2101 low-noise focal plane array designed and manufactured by NIT Full HD resolution - 1920x1080px @8µm pixel pitch Linear response mode: High Sensitivity Read-out noise 25e- USB 3.0 & CameraLink
(-)
Resolution
1920x1080
Interface
CameraLink
USB 3.0
Linear response
SenS 1280
High Sensitivity
GenICam compliant
High Sensitivity SXGA SWIR camera SXGA resolution - 1280x1024px @10µm…
(+)
High Sensitivity SXGA SWIR camera SXGA resolution - 1280x1024px @10µm pixel pitch Linear response mode: High sensitivity Read-out noise 30e- USB 3.0 & CameraLink & SDI & CxP interface TEC1 Available in Compact & Smart GenICam compliant (Smart)
(-)
Resolution
1280x1024
Interface
CameraLink
SDI
USB 3.0
CxP
Linear response
WiDy SenS 640
HDR
High Sensitivity
High Sensitivity & HDR camera The best trade-off on the…
(+)
High Sensitivity & HDR camera The best trade-off on the market - unique dual-response InGaAs sensor (Lin & Log) VGA resolution - 640x512px @15µm pixel pitch Various interfaces: USB 3.0, CameraLink, GigE, Analog or SDI interface (GUI & SDK compatibility) TEC1 Bad Pixels Replacement and smart Non-Uniformity Correction (NUC) Gated mode option (Fastest gating capability) Available in Compact & Embedded "Naked" version option (Module)
(-)
Resolution
640x512
Interface
Analog
CameraLink
GigE
SDI
USB 3.0
120dB Dynamic Range
Linear response
Logarithmic response
NSC1601 - NIT's SWIR InGaAs sensor2
NSC1601
HDR
High Sensitivity
Unique Dual-response mode SWIR InGaAs sensor designed and manufactured by…
(+)
Unique Dual-response mode SWIR InGaAs sensor designed and manufactured by NIT, in France VGA SWIR InGaAs detector, 640x512 active pixels, 15 µm square pixels, 12.3mm diagonal High QE InGaAs : 80% from 900nm-1.7µm, Dual-response mode High Dynamic Range thanks to its patented Solar Cell pixel structure: 120 dB, Logarithmic mode  – no illumination saturation High sensitivity mode with CTIA linear structure, dual gain, Correlated Double sampling (CDS), low read-out noise TEC Low power consumption Defense & Industrial application uses
(-)
Resolution
640x512
Interface
120dB Dynamic Range
Linear response
Logarithmic response
WiDy SenS 320 front side view2
WiDy SenS 320
HDR
High Sensitivity
High speed
Low price point
High-speed & cost-effective SWIR camera The low-price point SWIR camera…
(+)
High-speed & cost-effective SWIR camera The low-price point SWIR camera – Unique dual-response InGaAs sensor (Lin & Log) QVGA resolution@15µm pixel pitch Deliver up to 1kHz full-frame Various interfaces: USB 3.0, CameraLink & GigE 30mm cage system compatible NEW High-speed model: Frame rate 10kHz (ROI), Exposure time 10µs mini, USB3.0 interface
(-)
Resolution
320x256
Interface
CameraLink
GigE
USB 3.0
120dB Dynamic Range
Linear response
Logarithmic response
HiPe SenS 640 front side view3
HiPe SenS 640
High Sensitivity
High-Performance Air-Cooled SWIR camera Low Dark current for Long exposure…
(+)
High-Performance Air-Cooled SWIR camera Low Dark current for Long exposure applications VGA resolution - 640x512px @15µm pixel pitch USB 3.0 & CameraLink interface TEC2 & Fan Air-cooled Bad Pixels Replacement and Non-Uniformity Correction (NUC)
(-)
Resolution
640x512
Interface
CameraLink
USB 3.0
Linear response
Low Dark current
WiDy SWIR 640 front view3
VGA HDR SWIR camera Patented HDR technology (120dB) VGA resolution…
(+)
VGA HDR SWIR camera Patented HDR technology (120dB) VGA resolution - 640x512px @15µm pixel pitch Various interfaces: USB 3.0, CameraLink, GigE, or Analog interface (GUI & SDK compatibility) TECless Available in Compact & Embedded
(-)
Resolution
640x512
Interface
Analog
CameraLink
GigE
USB 3.0
120dB Dynamic Range
Logarithmic response
TECless
WiDy NaNo3
Ultra-compact miniature SWIR module VGA 640×512, Pitch: 15µm Plug-and-play, a…
(+)
Ultra-compact miniature SWIR module VGA 640×512, Pitch: 15µm Plug-and-play, a small form factor for embedded platforms High Dynamic Range 120dB Low power consumption - TECless Up to 100fps full frame USB3.0
(-)
Resolution
640x512
Interface
USB 3.0
120dB Dynamic Range
Logarithmic response
TECless
WiDy SWIR 320 front view2
QVGA HDR SWIR camera QVGA 320×256, Pitch: 25µm TECless, low-power…
(+)
QVGA HDR SWIR camera QVGA 320×256, Pitch: 25µm TECless, low-power consumption with NIT patented HDR technology (120dB) USB3.0/CameraLink interface Compact and low power consumption camera Cost-effective solution
(-)
Resolution
320x256
Interface
CameraLink
USB 3.0
120dB Dynamic Range
Logarithmic response
TECless
LiSaSWIR 2048 v23
Coming soon
LiSaSWIR 2048
Industrial Line-scan
Line-scan array SWIR camera Version 2 - Coming soon Line-scan array…
(+)
Line-scan array SWIR camera Version 2 - Coming soon Line-scan array Featuring NIT’s NSC2301 sensor designed and manufactured by NIT 2K resolution - 2048x1px @8µm pixel pitch
(-)
Resolution
2048x1
Interface
CameraLink
Linear response

NIT's Premium SWIR products

Frequently Asked Questions

Understanding SWIR Imaging

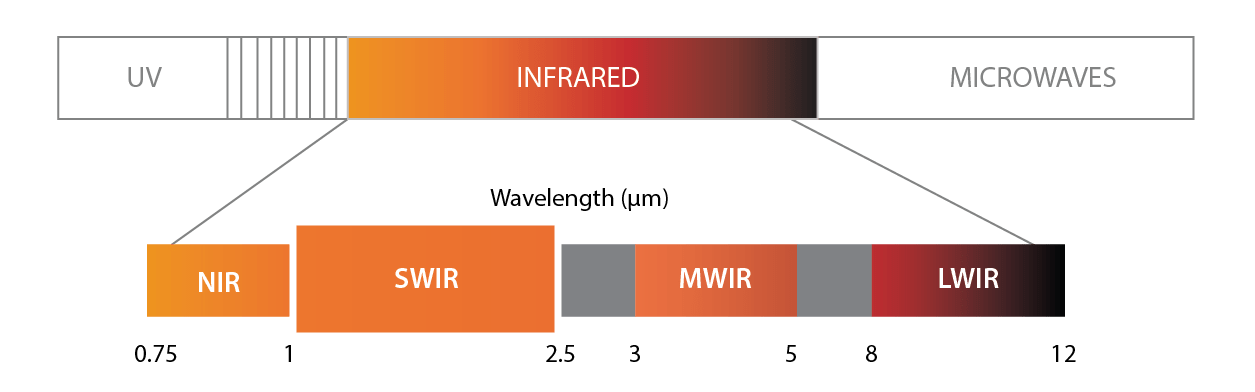

Shortwave Infrared (SWIR) imaging operates in the 900-1700nm wavelength range, allowing it to capture details invisible to conventional visible light cameras. This technology benefits seeing through obscurants like smoke, fog, and certain materials, making it an essential tool for various industrial, scientific, and defense applications.

Key Advantages of SWIR Imaging:

  • Material Penetration – SWIR light can penetrate certain materials like silicon, making it ideal for semiconductor inspection.
  • High Contrast Imaging – Enhanced visibility in low-light conditions and high-contrast environments.
  • Thermal Sensitivity – Detects heat variations without requiring active illumination.
  • Water & Moisture Detection – Useful in agriculture and food sorting applications.

What is InGaAs and Why is it Essential for SWIR Imaging?

Indium Gallium Arsenide (InGaAs) is a specialized semiconductor material used in SWIR sensors due to its high quantum efficiency in the 900-1700nm range. Unlike silicon-based sensors, which are limited to the visible spectrum, InGaAs enables imaging beyond human vision, making it indispensable for SWIR applications.

Advantages of InGaAs Sensors:

  • High Sensitivity – Superior performance in low-light and high-contrast conditions.
  • Low Noise & High Dynamic Range – Delivers crisp, clear images even in challenging environments.
  • Temperature Stability – Reliable performance across various operational conditions.
  • Broad Wavelength Coverage – Ideal for applications such as semiconductor inspection, surveillance, biomedical imaging, and industrial sorting.

At NIT, we design and develop our own InGaAs sensors, ensuring that our SWIR cameras deliver unparalleled performance, flexibility, and reliability. This in-house capability allows us to push the boundaries of SWIR imaging technology while providing tailored solutions for our customers.

Applications of SWIR Imaging

Our SWIR cameras are trusted across industries for their ability to see beyond the visible spectrum:

  • Semiconductor Inspection – Detect hidden defects and measure silicon wafer thickness.
  • Welding & Additive Manufacturing – Monitor high-temperature processes for precision and quality control.
  • Security & Surveillance – Enhance visibility in low-light and challenging environments.
  • Laser Applications – Monitor laser sources and alignments accurately.
  • Microscopy & Life Science – Capture high-resolution images for biological and medical research.
  • Other Applications – Discover more possibilities with our versatile SWIR cameras.

Explore more on our Applications Page.

SWIR example images

NIT SWIR Camera Product Lines

  • WiDy SWIR Series – Patented HDR (120dB), Logarithmic Response, No Saturation
  • WiDy SenS Series – Switchable Dual-Response: HDR 120dB & High Sensitivity
  • SenS Series – High-Sensitivity, Low-Noise SWIR Cameras
  • LiSaSWIR – Line-scan SWIR cameras

Why NIT's SWIR Cameras Stand Out from Competitors?

Unlike many SWIR camera manufacturers that rely on third-party sensors, NIT is the only company designing and producing its own InGaAs sensors while also manufacturing cameras and software. This vertical integration allows us to offer superior performance, faster innovation, and unmatched flexibility in customization.

Key Competitive Advantages:

  • Only manufacturer offering qVGA to Full HD InGaAs sensors & cameras.
  • Best-in-class noise and sensitivity performance.
  • Logarithmic HDR & linear response modes – unique in the market.
  • Full control over sensor, camera, and software development.
  • Custom OEM solutions available for specialized applications.
  • Premium SWIR By Lynred

Get your best SWIR products

Experience the next generation of high-resolution, low-noise SWIR imaging with New Imaging Technologies. Whether for industrial, scientific, or defense applications, our cutting-edge SWIR cameras deliver the performance and flexibility you need.

Get in Touch with Our Experts Today

Request a Demo
