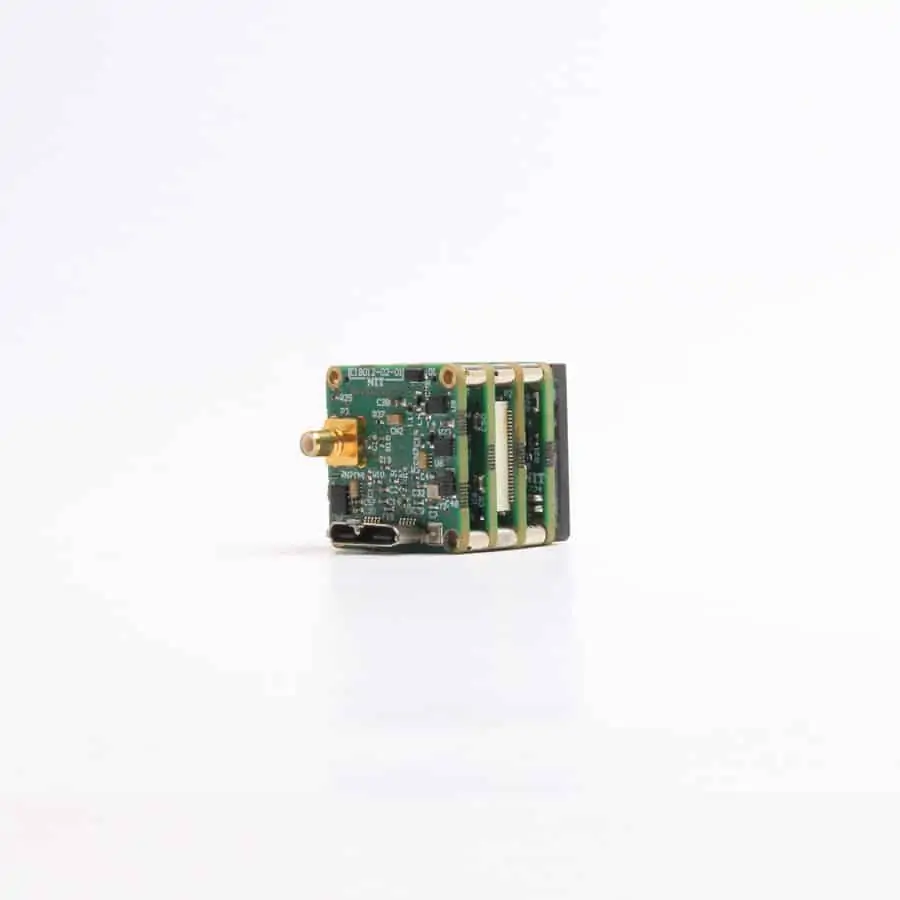

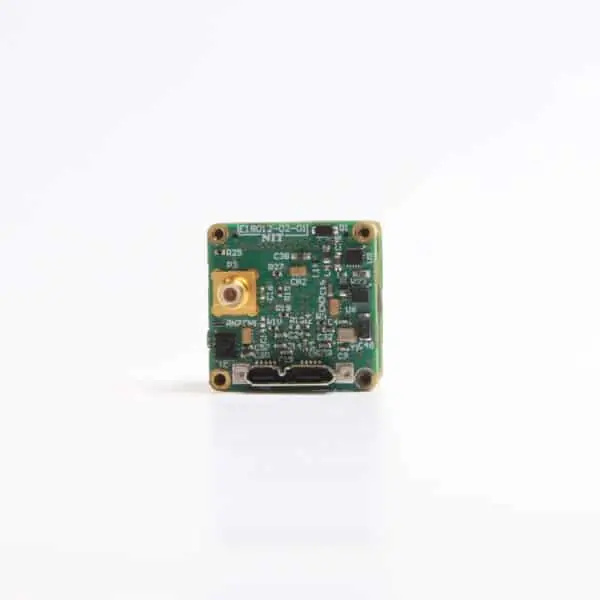

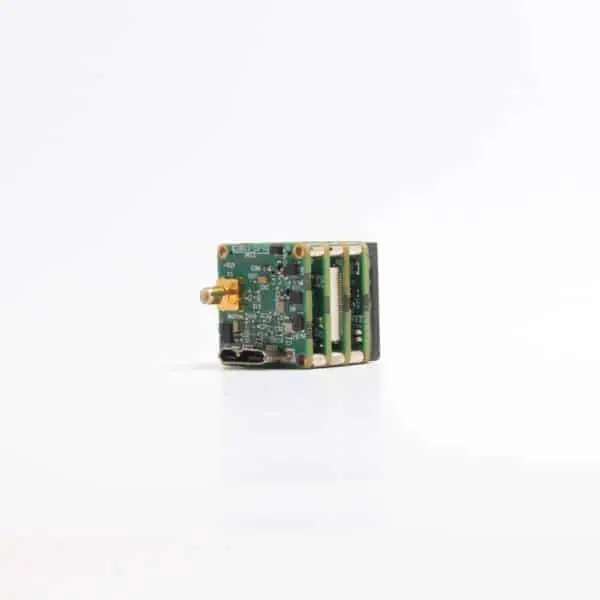

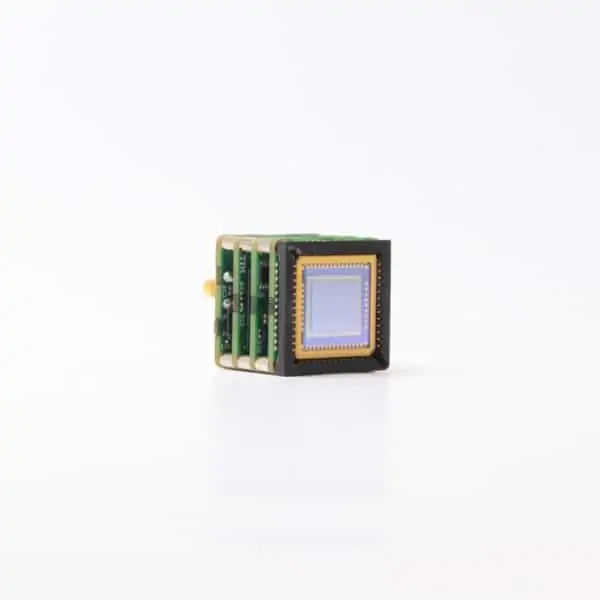

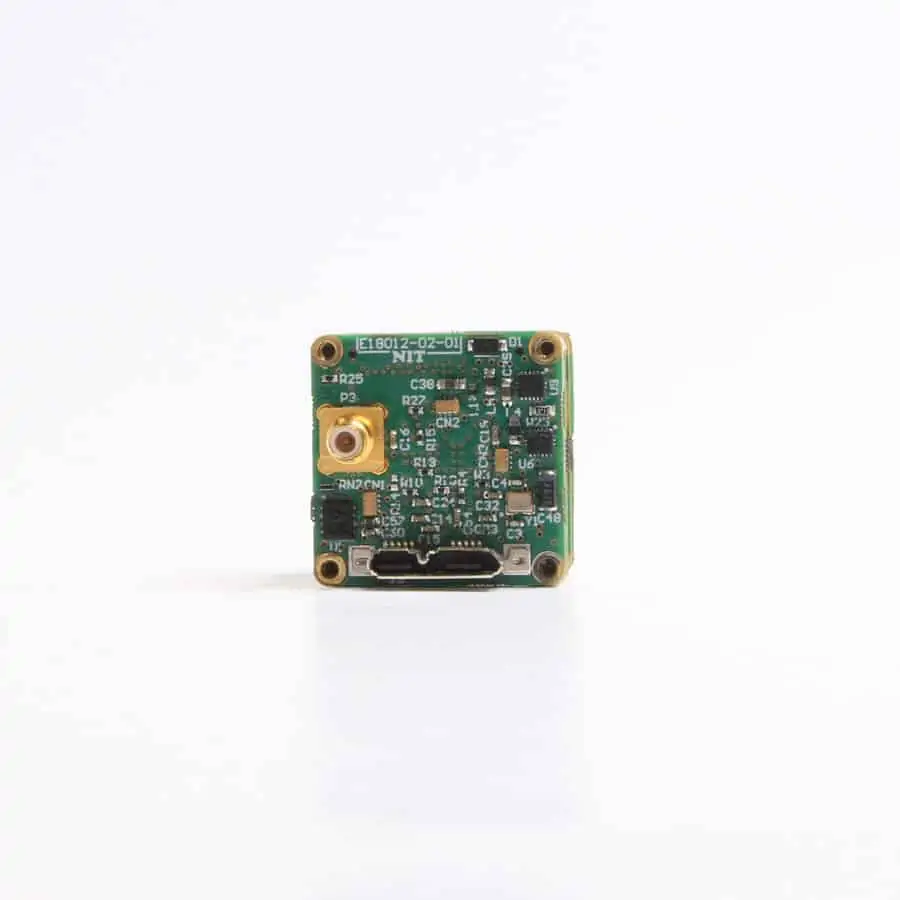

WiDy NaNo 640

Ultra-compact miniature SWIR module

  • VGA 640×512, Pitch: 15µm
  • Plug-and-play, a small form factor for embedded platforms
  • High Dynamic Range 120dB
  • Low power consumption – TECless
  • Up to 100fps full frame
  • USB3.0

Technical Specification

Interface USB3.0
Resolution 640(H)x512(V)
Sensor format 1 inch
Pixel pitch 15µm
Mode Snapshot
Exposure time 100us to 25ms
Spectral response 0.9 to 1.7um
Dynamic range 120dB
ADC 14 bits
Frame rate Up to 100Hz
Trigger No
Power Consumption 1.5W
Power Range 5V (USB)
Dimension 25x25x29mm
Mount Compatible With C-/CS mount (optional)
Weight <125g
Temperature Range 0 to 65°C


Interface GUI SDK
USB 3.0 NITVision Yes



The WiDy NaNo has been designed for SWIR applications where size is crucial. Embedded in UAVs or mounted on helmets, the WiDy NaNo with its 25 x 25 x 29 mm3 provides HDR images clear of saturation in high light conditions. Its TECless feature eases the integrations in Portable platforms.
