State-of-art SWIR cameras

A complete range of SWIR cameras and sensors all designed and made in our factory

Made by using state-of-the-art InGaAs material, all our sensors are developed and manufactured using proprietary and innovative manufacturing platforms at our facility. From ROIC to camera engineering, including CMOS design and hybridization, NIT brings SWIR solutions with performances and cost-effectiveness to your hands.

Find your SWIR cameras according to the technical specifications

Resolution
Interface
Hardware option
Showing 1 – -1 of 9 results Showing all 9 results Showing the single result No results found
Filters Sort results
Reset Apply
SenS 1280 - 1920 front side view3
New
High Sensitivity Full HD SWIR camera NIT's NSC2101…
+more
High Sensitivity Full HD SWIR camera NIT's NSC2101 low noise focal plane array designed and manufactured by NIT Full HD resolution - 1920x1080px @8µm pixel pitch Linear response mode: High sensitivity Read-out noise 25e- USB 3.0
-less
Resolution
1920x1080
Interface
USB 3.0
Linear response
WiDy SenS 320 front side view2
High speed & cost-effective SWIR camera The low-price…
+more
High speed & cost-effective SWIR camera The low-price point SWIR camera – Unique dual-response InGaAs sensor (Lin & Log) QVGA resolution@15µm pixel pitch Deliver up to 1kHz full-frame Various interfaces: USB 3.0 & CameraLink 30mm cage system compatible NEW High-speed model: Frame rate 10kHz (ROI), Exposure time 10µs mini, USB3.0 interface
-less
Resolution
320x256
Interface
CameraLink
USB 3.0
120dB Dynamic Range
Linear response
Logarithmic response
WiDy SenS 6407
High Sensitivity & HDR camera The best trade-off…
+more
High Sensitivity & HDR camera The best trade-off on the market - unique dual-response InGaAs sensor (Lin & Log) VGA resolution - 640x512px @15µm pixel pitch Various interfaces: USB 3.0, CameraLink, GigE, Analog or SDI interface (GUI & SDK compatibility) TEC1 Bad Pixels Replacement and smart Non-Uniformity Correction (NUC) Gated mode option (Fastest gating capability) Available in Compact & Embedded "Naked" version option (Module)
-less
Resolution
640x512
Interface
Analog
CameraLink
GigE
SDI
USB 3.0
120dB Dynamic Range
Linear response
Logarithmic response
SenS 1280 - 1920 front side view3
High Sensitivity SXGA SWIR camera SXGA resolution -…
+more
High Sensitivity SXGA SWIR camera SXGA resolution - 1280x1024px @10µm pixel pitch Linear response mode: High sensitivity Read-out noise 30e- USB 3.0 & CameraLink & SDI & CxP interface TEC1 Available in Compact & Smart GenICam compliant (Smart)
-less
Resolution
1280x1024
Interface
CameraLink
SDI
USB 3.0
CxP
Linear response
HiPe SenS 640 front side view3
High-Performance Air-Cooled SWIR camera Low Dark current for…
+more
High-Performance Air-Cooled SWIR camera Low Dark current for Long exposure applications VGA resolution - 640x512px @15µm pixel pitch USB 3.0 & CameraLink interface TEC2 & Fan Air-cooled Bad Pixels Replacement and Non-Uniformity Correction (NUC)
-less
Resolution
640x512
Interface
CameraLink
USB 3.0
Linear response
Low Dark current
WiDy SWIR 640 front view3
VGA HDR SWIR camera Patented HDR technology (120dB) …
+more
VGA HDR SWIR camera Patented HDR technology (120dB) VGA resolution - 640x512px @15µm pixel pitch Various interfaces: USB 3.0, CameraLink, GigE, or Analog interface (GUI & SDK compatibility) TECless Available in Compact & Embedded
-less
Resolution
640x512
Interface
Analog
CameraLink
GigE
USB 3.0
120dB Dynamic Range
Logarithmic response
TECless
WiDy NaNo3
Ultra-compact miniature SWIR module VGA 640×512, Pitch: 15µm …
+more
Ultra-compact miniature SWIR module VGA 640×512, Pitch: 15µm Plug-and-play, a small form factor for embedded platforms High Dynamic Range 120dB Low power consumption - TECless Up to 100fps full frame USB3.0
-less
Resolution
640x512
Interface
USB 3.0
120dB Dynamic Range
Logarithmic response
TECless
WiDy SWIR 320 front view2
QVGA HDR SWIR camera QVGA 320×256, Pitch: 25µm …
+more
QVGA HDR SWIR camera QVGA 320×256, Pitch: 25µm TECless, low-power consumption with NIT patented HDR technology (120dB) USB3.0/CameraLink interface Compact and low power consumption camera Cost-effective solution
-less
Resolution
320x256
Interface
CameraLink
USB 3.0
120dB Dynamic Range
Logarithmic response
TECless
LiSaSWIR 2048 front side view3
Line-scan array SWIR camera Line-scan array 2K resolution…
+more
Line-scan array SWIR camera Line-scan array 2K resolution - 2048x1px @7.5µm pixel pitch Linear response mode: High sensitivity CameraLink interface Bad Pixels Replacement and embedded Non-Uniformity Correction (NUC)
-less
Resolution
2048x1
Interface
CameraLink
Linear response

SWIR InGaAs Sensors

NIT’s proprietary InGaAs sensor

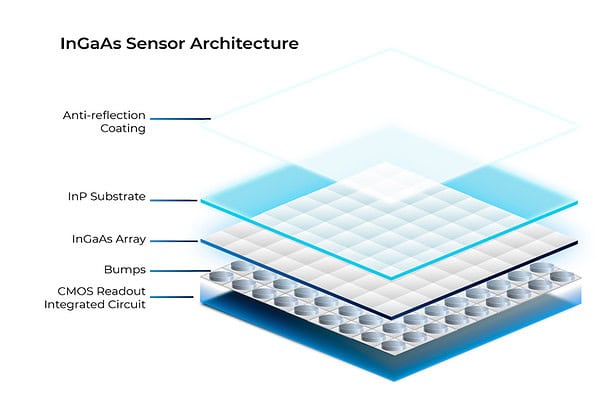

NIT designs and manufactures all the InGaAs sensors embedded into our cameras in France. We master the design of silicon read-out circuitsInGaAs photodiode arraysand assembly technologies such as 3D stacking.

The sensitivity, noise level, frame rate, pitches, dynamic range, and pixel numbers of our InGaAs sensors are the best in their class.

Here are our commercial availabilities of SWIR sensors alone to meet the market’s diverse needs for volume-qualified OEM customers.

Filters Sort results
Reset Apply
NSC1601 - NIT's SWIR InGaAs sensor2

Unique Dual-response mode

  • SWIR InGaAs sensor designed and manufactured by NIT, in France
  • VGA SWIR InGaAs detector, 640x512 active pixels, 15 µm square pixels, 12.3mm diagonal
  • High QE InGaAs : 80% from 900nm-1.7µm,
  • Dual-response mode
    • High Dynamic Range thanks to its patented Solar Cell pixel structure: 120 dB, Logarithmic mode  – no illumination saturation
    • High sensitivity mode with CTIA linear structure, dual gain, Correlated Double sampling (CDS), low read-out noise
  • TEC
  • Low power consumption
  • Defense & Industrial application uses
Resolution
640x512
Interface

Get your best SWIR products

Whether you want a price quotation, application advice, or schedule a demo, we are only one click away.
