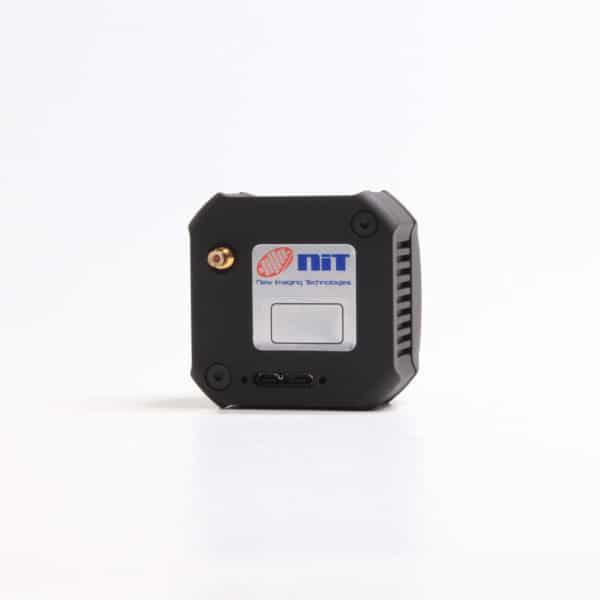

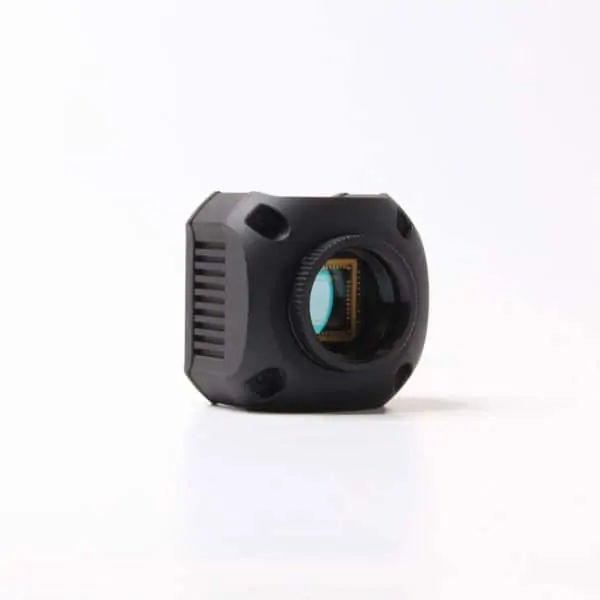

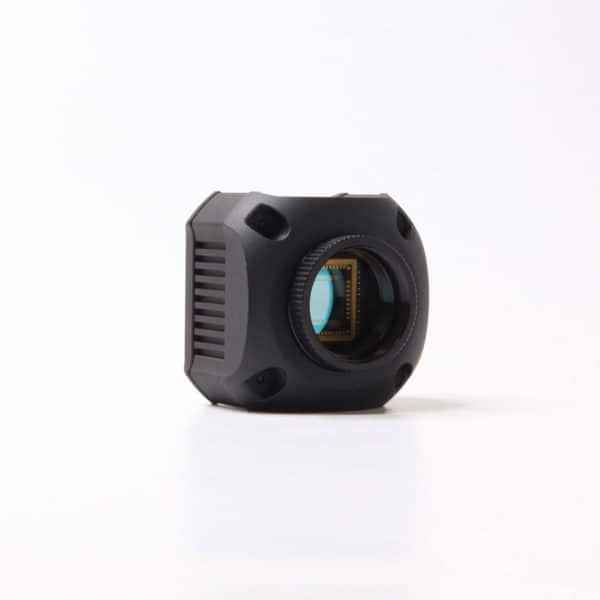

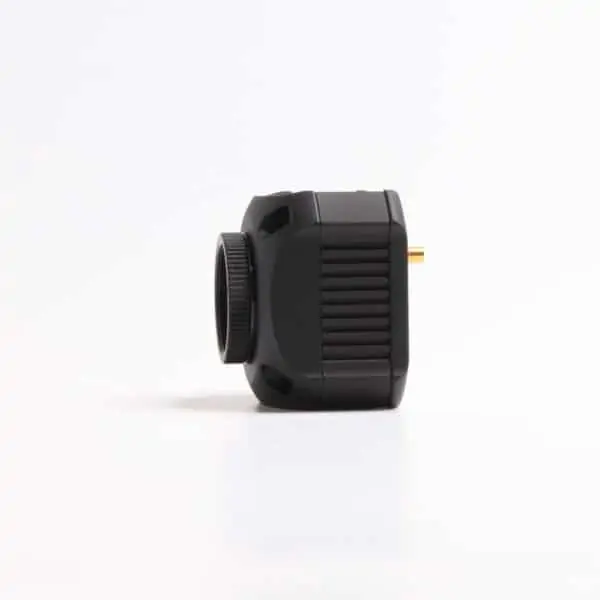

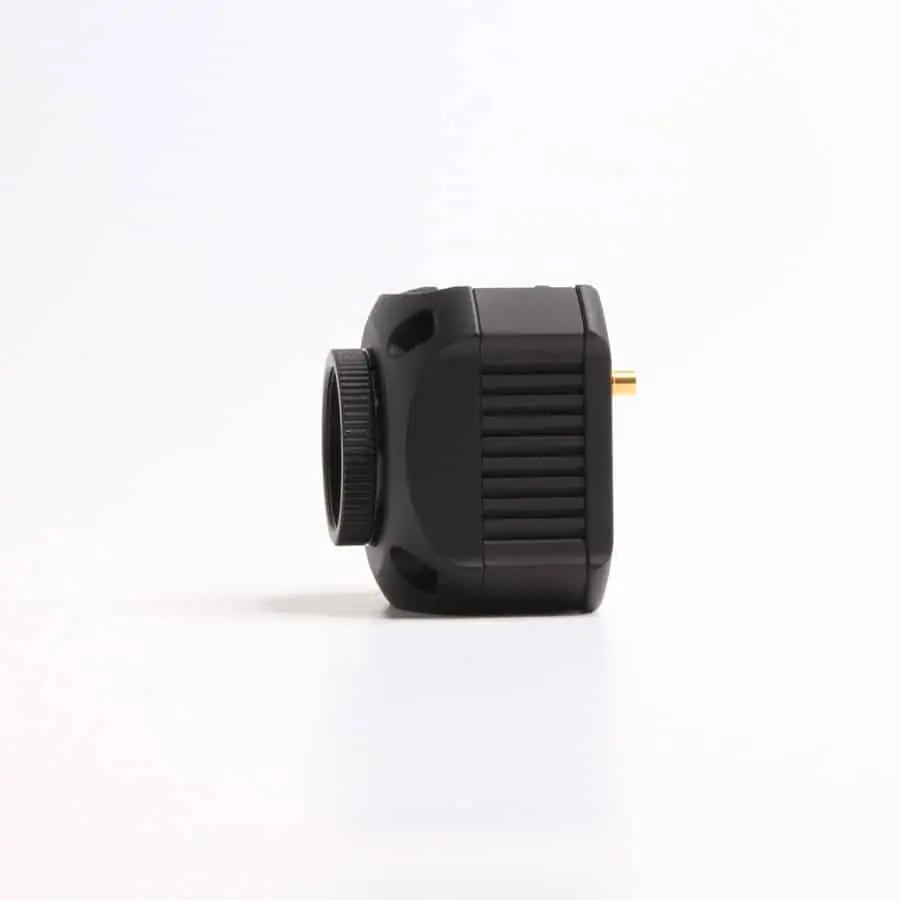

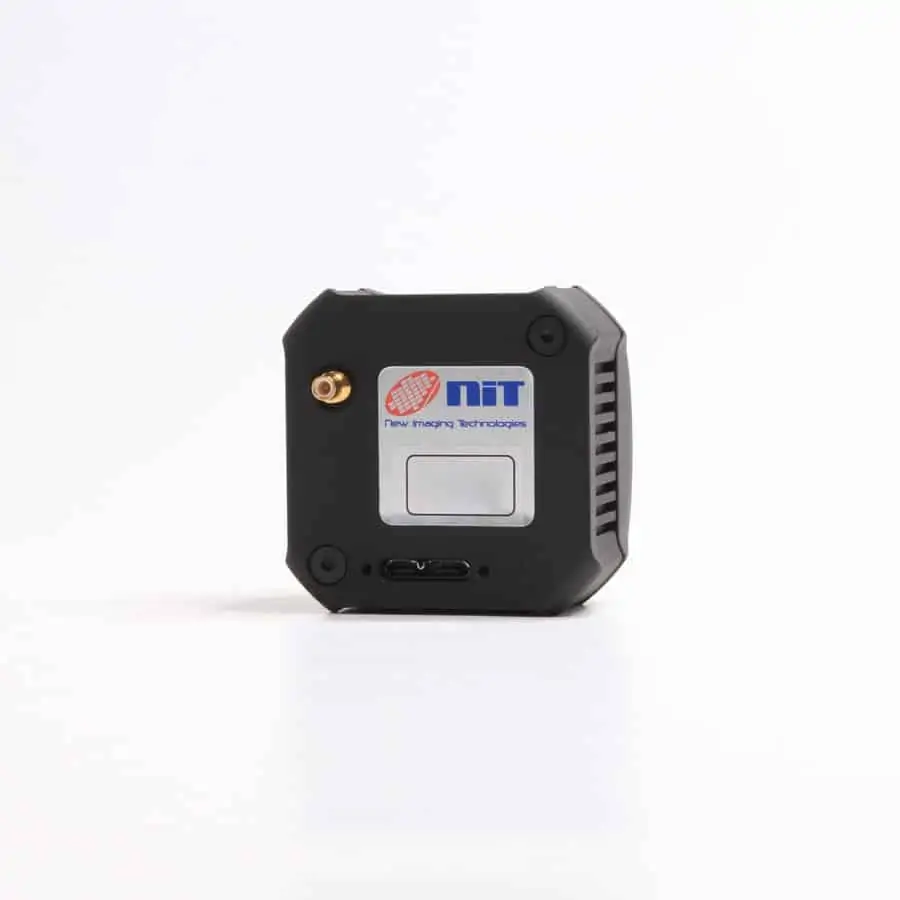

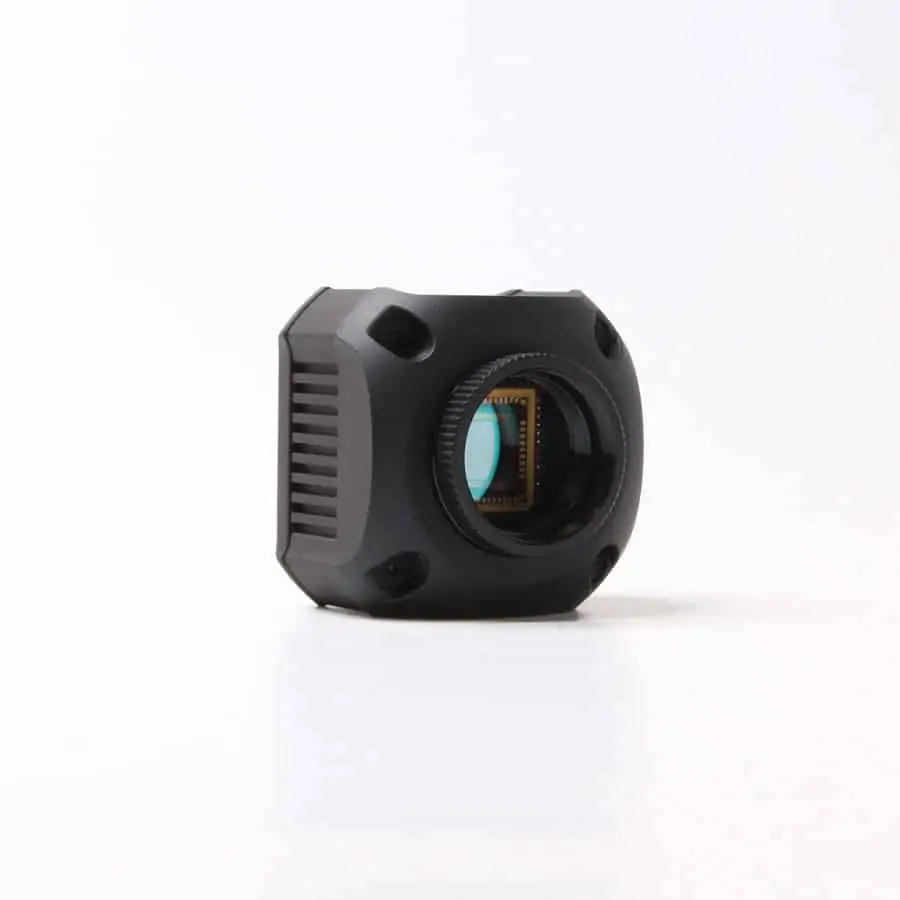

WiDy SWIR 640
VGA HDR SWIR camera
- Patented HDR technology (120dB)
- VGA resolution – 640x512px @15µm pixel pitch
- Various interfaces: USB 3.0, CameraLink, GigE, or Analog interface (GUI & SDK compatibility)
- TECless
- Available in Compact & Embedded
Technical Specification
| Interface | USB3.0/CameraLink/GigE/Analog |
| Resolution | 640(H)x512(V) |
| Sensor format | 1 inch |
| Pixel pitch | 15µm |
| Mode | Snapshot |
| Exposure time | 100μs to 200ms |
| Trigger | Input or Output |
| Spectral response | 0.9 to 1.7μm |
| Dynamic range | 120dB typical |
| ADC | 14 bits |
| Frame rate | 100Hz |
| Power Consumption | < 2.7W |
| Power Range | 5 to 15V |
| Dimension | 48.6x48.6x42.2mm |
| Mount | CS/C |
| Weight | <160g |
| Temperature Range | -40 to 71°C |
| Mechanical | Vibration and shock tested |
Software
| Interface | GUI | SDK |
| USB 3.0 & GigE | NITVision | Yes |
| CameraLink (Compact) | WiDyCAM | No |
| CameraLink (Embedded) & Analog | NITLink | No |
Applications
The WiDy SWIR family is perfectly suitable for applications and environments where the light flux could be hard to handle. Delivering a dynamic of 120dB, outdoor applications such as airborne will be a perfect playground for our family members. At an attractive price, the WiDy SWIR offers a sufficient VGA resolution and an image quality valuable for some industrial inspections.
