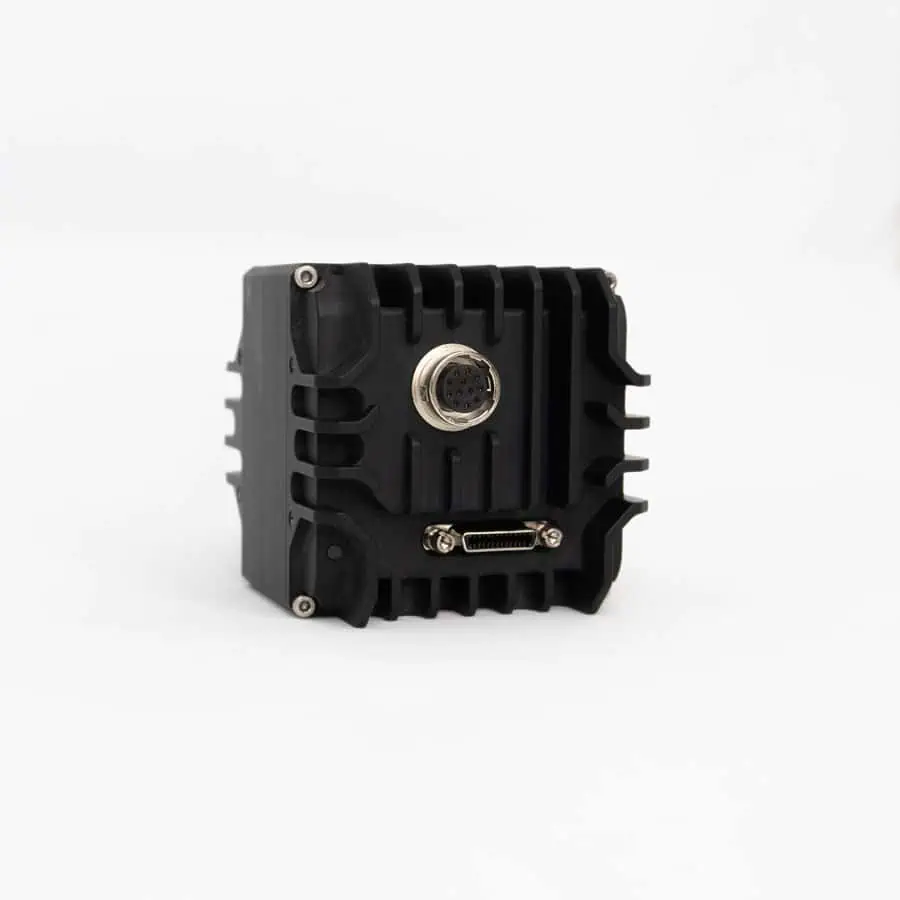

SenS 1920
High Sensitivity Full HD SWIR camera
- NIT’s NSC2101 low noise focal plane array designed and manufactured by NIT
- Full HD resolution – 1920x1080px @8µm pixel pitch
- Linear response mode: High sensitivity
- Read-out noise 25e-
- USB 3.0
Preliminary Technical Specifications
| Sensor | NSC2101T-SI |
| Material | InGaAs |
| Resolution | 1920x1080 (2 Mpix resolution) |
| Pixel pitch | 8μm |
| Spectral response | 0.9 to 1.7μm |
| Dual response | Linear (CTIA) Low & High Gain |
| Modes | ITR, CDS, ROI |
| QE | >80% (LG) |
| Frame rate | >40Hz full frame |
| Partial Reading Mode |
|
| Read-out noise | typ. 25e- |
| Dimension | 58x58x70mm |
| Weight | <400g |
| Mount | C-Mount native |
| GUIs | NITVision |
| SDKs (USB) | x86-64 & Arm64 (C++,C#, Python) |
Image example
Applications
The SenS 1920 camera is the perfect choice for multiple applications. The pure linear mode (High sensitivity with low noise 25e-) offers the ability to be used as a beam diagnostic tool. Its 1920 x 1080 pixels resolution offers a better field of view for inspection of semiconductor or solar cell panels. Also, SXGA resolution will give you extended possibilities for Defense & Security applications with better details and sharpness.
