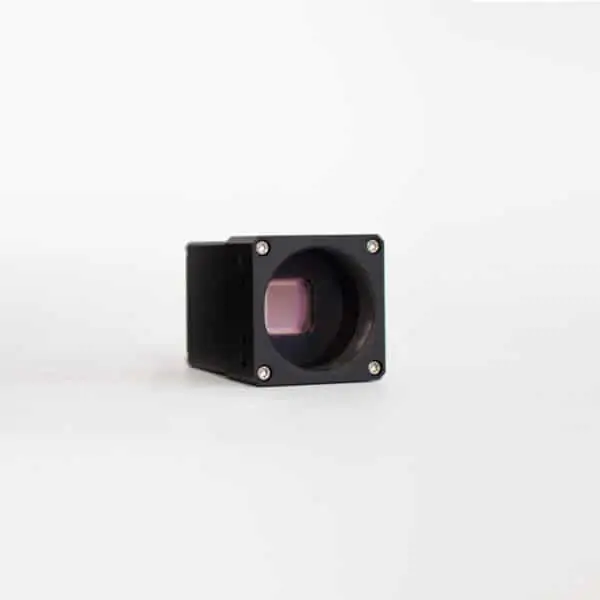

MN1003

HDR CMOS Miniature Camera

  • High Dynamic Range 140dB
  • Monochrome/ Color
  • USB3.0
  • IV+IR cut-off filter option

Technical Specification

Resolution 1280(H)x1024(V)
Interface USB 3.0
Sensor format 2/3 inch
Sensor type Monochrome/ Color
Pixel pitch 6.8µm
Mode Rolling/Global shutter/ Differential
Spectral response Visible
Dynamic range >140dB
ADC 14 bits
Frame rate 50 fps max
Power consumption 1.5W
Power Range 4 to 12V
Dimension 30x30x38mm
Mount CS/C
Weight < 60g
Temperature Range 0°C to +70°C

Applications

The USB3.0 output and small size make the Monoboard MN1003 family a good choice for integrationHDR images enhance the images of your welding processes like never before. Robotics and outdoor applications could also enjoy the quality of the images of our HDR cameras.
