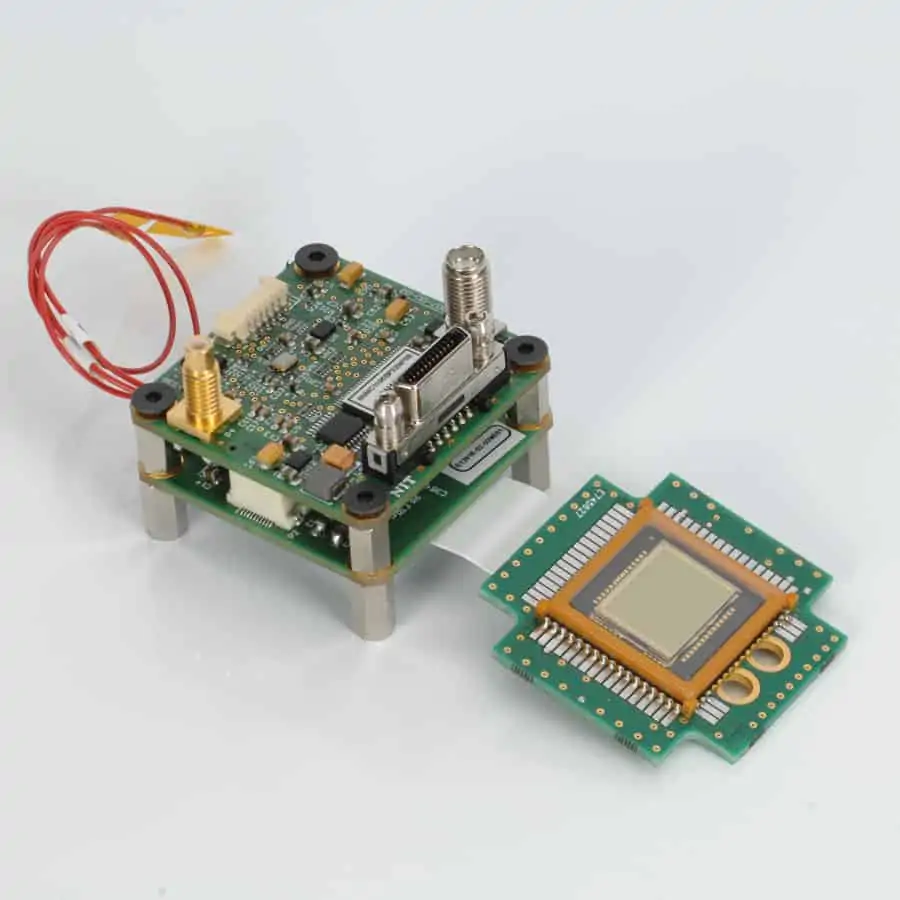

MC1105F
Compact and low-power night vision module dedicated to intensified solutions.
- USB3.0 or CameraLink
- 1.3 Mpixels
- HDR up to 140dB with proprietary Logarithmic response
- Delivered without Fiber Optic Plate (FOP) – 18mm diagonal.
- OEM version – Module supplied without housing
Technical Specification
| Resolution | 1280(H)x1024(V) |
| Interface | USB3.0/CameraLink |
| Sensor format | 1 inch |
| Sensor type | Monochrome/ Fiber optical bundle |
| Pixel pitch | 10.6µm |
| Mode | Rolling: Integration time Fixed depending on the frame rate: 1/(frame rate)
BINNING 2x2: The bin scan will group 2 lines and 2 columns. Output format 640x512 ZOOM: The zoom scan reads only the 640x480 (VGA) portion centered on the pixel array. |
| Spectral response | 0.4 to 1um |
| Dynamic range | >140dB |
| ADC | 14 bits |
| Frame rate | Standard Frame Rate: 25Hz / 30Hz Adjustable between 17Hz to 44Hz |
| Trigger | IN/OUT (LVTTL) |
| Power consumption | 1.5W |
| Power Supply | 5V nominal |
| Dimension | 40x40x43.42mm |
| Mount | No optical interface |
| Weight | < 50g |
| Temperature Range | 0°C to +80°C |
Applications
The resolution of 1280x1024 pixels with a 10.6µm pitch yields an 18mm diagonal to fit most intensified tubes with straight fibers for a compact integration and optimized FTM. The pads are distant from the active area to ease the Fiber Optic Plate assembly and a special Black-Magic patented process is applied to efficiently glue the FOP on the sensor. Moreover, NIT’s patented logarithmic curve was tuned on this sensor to offer a higher linear portion of the curve for optimized contrast in the darker areas and still offer the >140dB dynamic range to avoid saturation with light sources or to deal with changing light environments while easing the sensor control for low power solutions. All these assets make the MC1105F the best fit for your intensified and I²-CMOS solutions for night vision applications.
