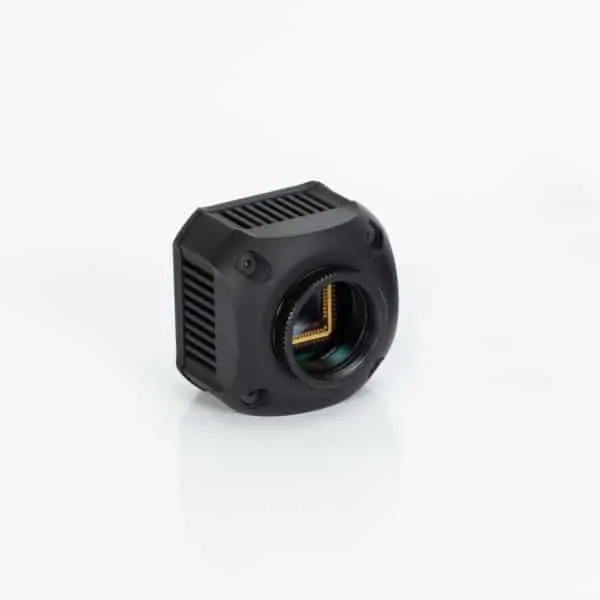

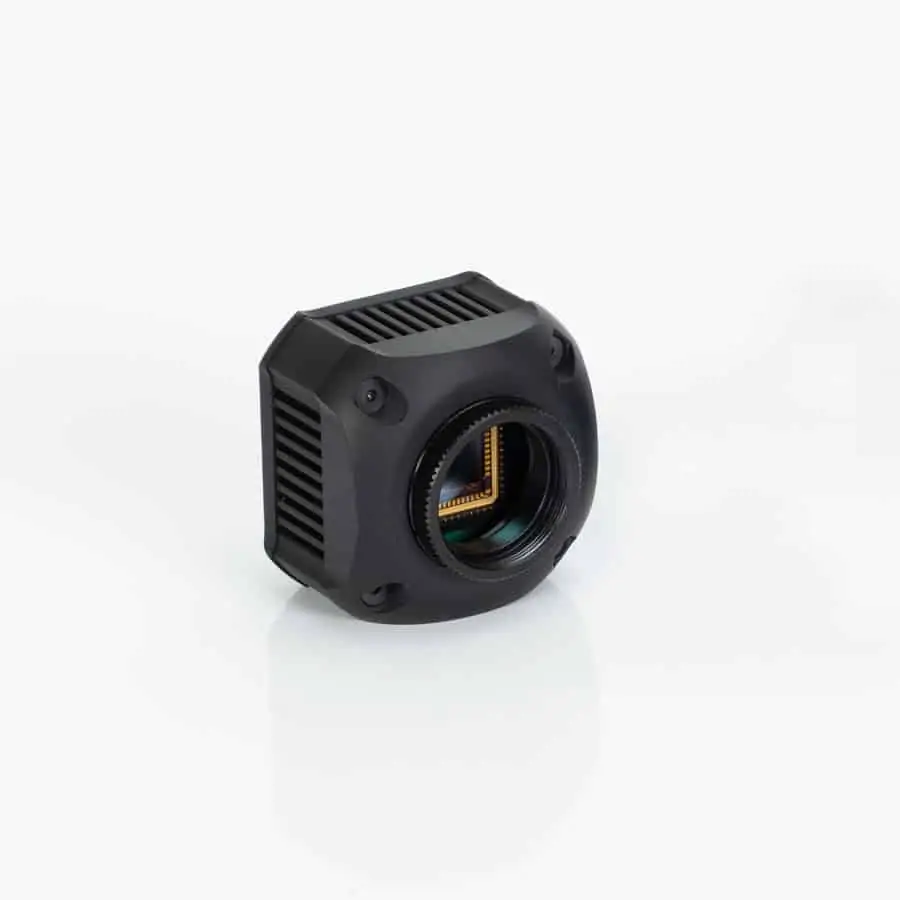

MC1003
HDR CMOS camera
- CMOS logarithmic response with rolling, snapshot, or differential mode
- High Dynamic range: 140dB
- Compact and low power consumption camera
- Monochrome / Color
- NSC1003 Sensor
- USB3.0/ GigE/ CameraLink
Technical Specification
| Resolution | 1280(H)x1024(V) |
| Interface | USB 3.0/ GigE/ CameraLink |
| Sensor format | 2/3 inch |
| Sensor type | Monochrome/ Color |
| Pixel pitch | 6.8µm |
| Mode | Rolling/Global shutter/ Differential |
| Spectral response | Visible |
| Dynamic range | 140dB typical |
| ADC | 14 bits |
| Frame rate | 37 fps |
| Trigger | IN/OUT (LVTTL) |
| Power consumption | < 1.5W |
| Power Range | 4 to 12V |
| Dimension | 48.6x48.6x47.4mm |
| Mount | CS/C |
| Weight | < 125g |
| Temperature Range | 0°C to +70°C |
Applications
HDR images enhance the images of your welding processes like never before. Robotics and real-time outdoor applications could also enjoy the quality of the images of our HDR cameras.
