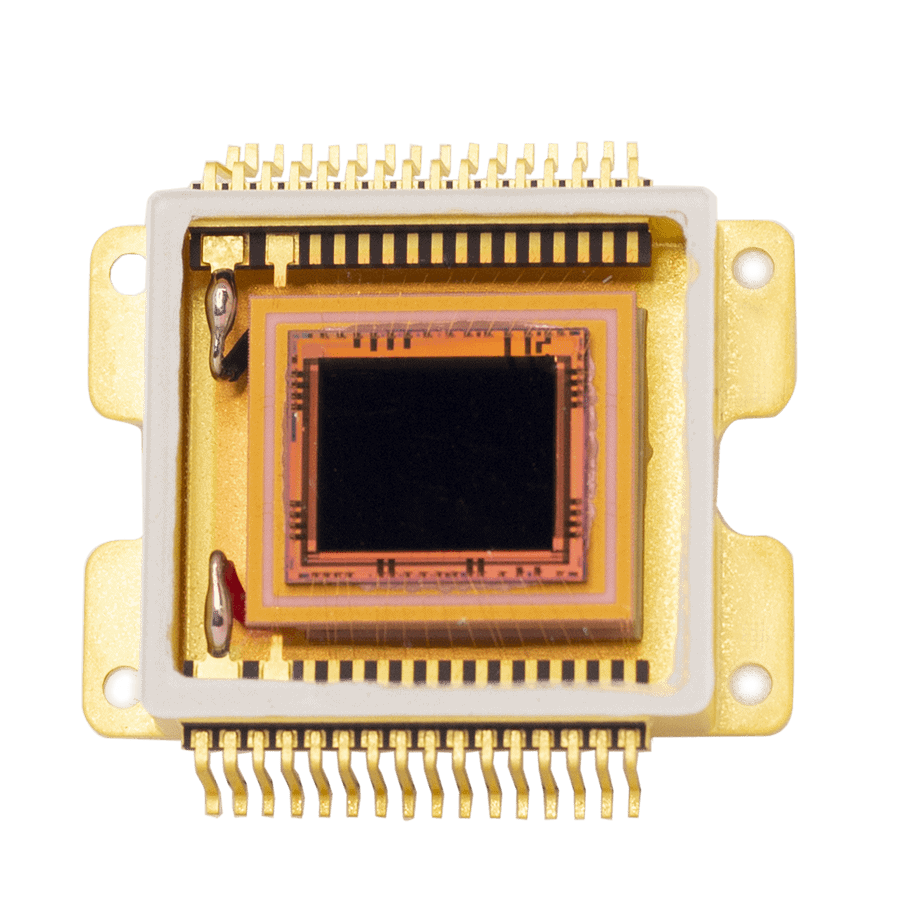

InGaAs NSC1601-SI

The NSC1601-SI is our flagship sensor. Featuring a unique dual mode, High sensitivity with a pure linear response and High Dynamic Range with a logarithmic response, the NSC1601-SI can easily meet requierements of the most challenging applications.

The NSC1601-SI is integrated in our WiDy SenS product line.


Technical specification

Resolution640 x 512
Pixel size15µm x 15µm
Spectral response900nm – 1700nm
Frame rate225 fps
Readout noise<50 e- (Linear mode)
Readout mode

Global shutter

Gated Imaging

Dynamic Range

120dB (Log mode)

63dB (CTIA low gain)

49dB (CTIA High gain)

PackageMetal Package (OEP252)
