HiPe SenS

HiPeSenS

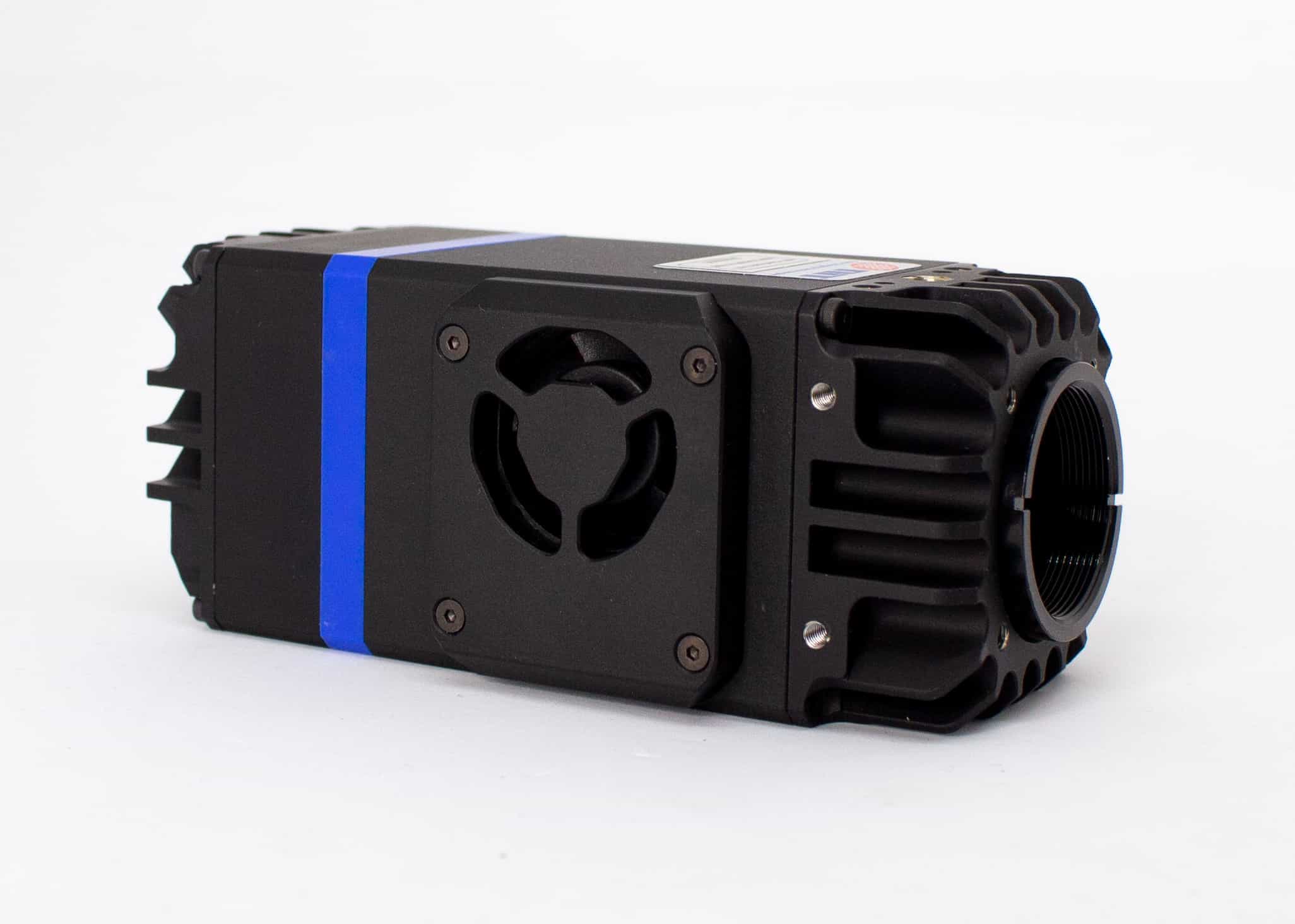

High-performance Air-cooled SWIR camera

  • High Sensitivity with low sensor noise <40e-
  • Low dark current, long exposure time
  • TEC2 & Air-cooled mode

Overview

Filter
Showing 1 – 2 of 2 results Showing all 2 results Showing the single result No results found
Filters Sort results
Model
Sensor
Resolution
Interface
Frame rate
Software
NSC1902T-SI
640x512
15µm²
USB 3.0
Up to 230 Hz full frame
WiDyVISION
SDK yes
NSC1902T-SI
640x512
15µm²
CameraLink
Up to 230 Hz full frame
WiDyCAM
SDK No

Softwares are provided for our SWIR cameras :

GUI

  • WiDyVISION is dedicated to our SWIR USB Cameras and Modules
  • WiDyCAM is compatible with CameraLink SWIR Cameras and Modules with CameraLink output

Software Development Kit…

The NITLibrary is a library that provides primary functionalities to interface with NIT USB and GigE cameras. It contains functions related to the device manager, the parameter settings (pixel clock, exposure time, sensor mode…), and the Automatic Gain Control to integrate our cameras in your projects.

SDK available in x86-64 and Arm64 (AARCH64))

x86-64

  • Windows:  C++, C#, Python
  • Linux
    • Debian9:   C++
    • Ubuntu 18.04: C++
    • Python

Arm64 (AARH64)

  • Linux:
    • Debian9:  C++
    • Ubuntu 18.04: C++

System requirement…

To run NIT Software, the minimum system requirements are:

  • Windows 8, 8.1 & 10
  • 32 bit or 64 bit
  • 4 GB RAM (minimum), 8GB RAM (recommended)
  • Frames grabber compatible: Dalsa ImperX
  • Intel Pro/1000 network card (or equivalent) with Jumbo Frames

To download our software, please register/ log-in at our Download page.

Applications

With TEC2 & air-cooled operating mode, the HiPe SenS is designed for low light, long exposure time applications (from 10us to 112s). It can operate with an FPA temperature as low as -20°C only with internal air cooling.  Also, the camera is easy for integration to microscope benches or any other optical devices, thanks to the small form factor.

Obtain a suitable SWIR solution!

Whether you want a price quotation, application advice, or schedule a demo, we are only one click away.
